Features:

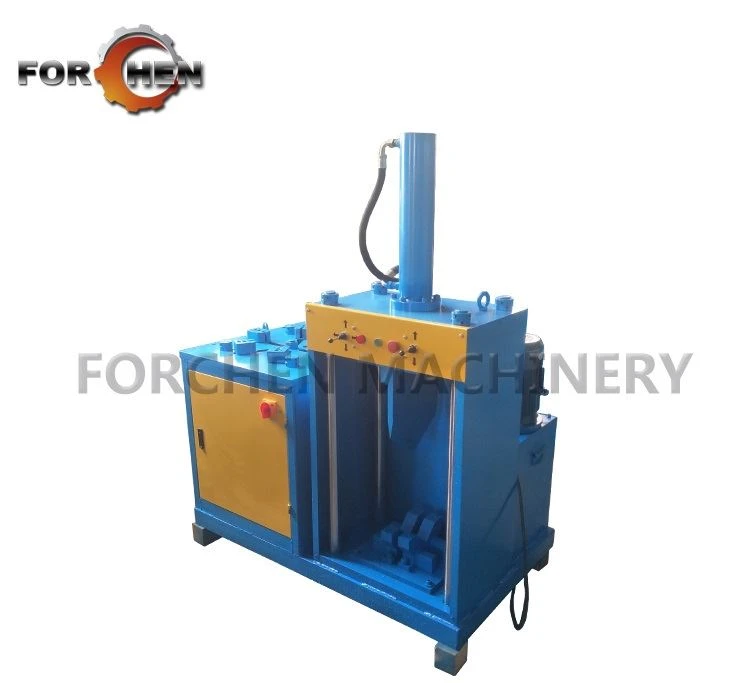

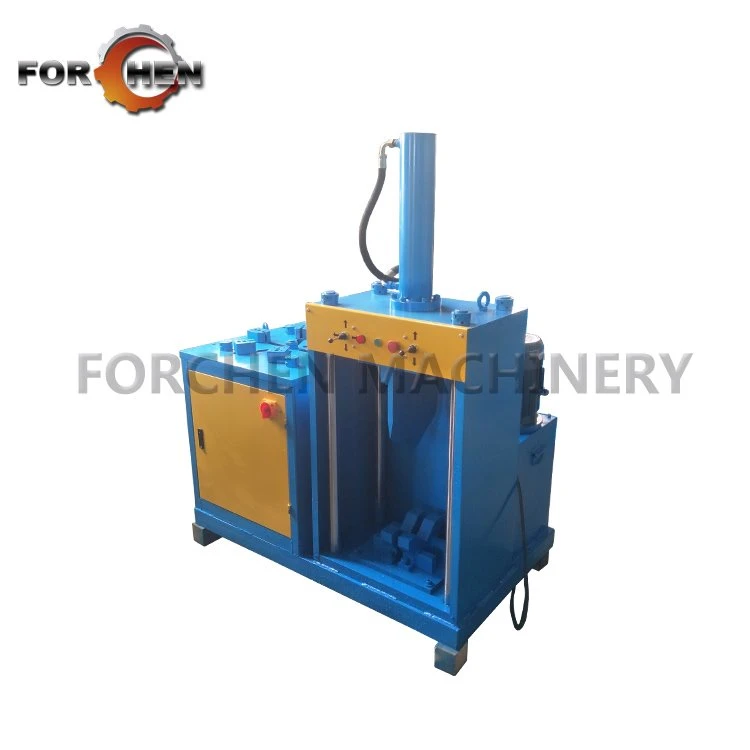

Motor stator separator machines are used to separate enameled cable coils in scrapped motors. The whole metal motor recycling machine has two parts: motor stator cutting machine, stator copper separator.
1. Simple operation. The machine is specially designed for scrap metal recycling, it is very convenient to pull the metal from the motor stator. Operators can be familiar with the separation process without complex training, which can greatly improve processing efficiency.
2. High efficiency and power saving. The machine can effectively simplify the complex process of manual separation and reduce the risk of personal injury to a certain extent. It is driven by an energy-saving motor and does not consume much power.
3. Wide range of use. This machine is suitable for the separation of various waste electrical cable coils, such as refrigerators, cold drink machines, air conditioners, fans, dehumidifiers, electrical irons, dust collectors, rice cookers, microwave ovens, electric ovens, etc.
Technical Parameter:
Name | Motor Stator Separator Machine |
Model | MR-02 |
Processed motor stator diameter | 8-30MM |
Processing capacity | 8-30pieces/hour |
Power | 5.5KW |
Voltage | customized |
Dimension | 1800*900*1500mm |
Weight | 1000kg |
Working principle:
1. Operators put the waste motor on the platform under the cutting blades, and then start the hydraulic cutting system, firstly motor shell will be cut and removed , then operators put the inner stator on the platform for second cutting.
2. After two cutting process, operators put the copper coil on the separator holder,finally the enamel copper cable will be pulled out of the coil.
