Introdution

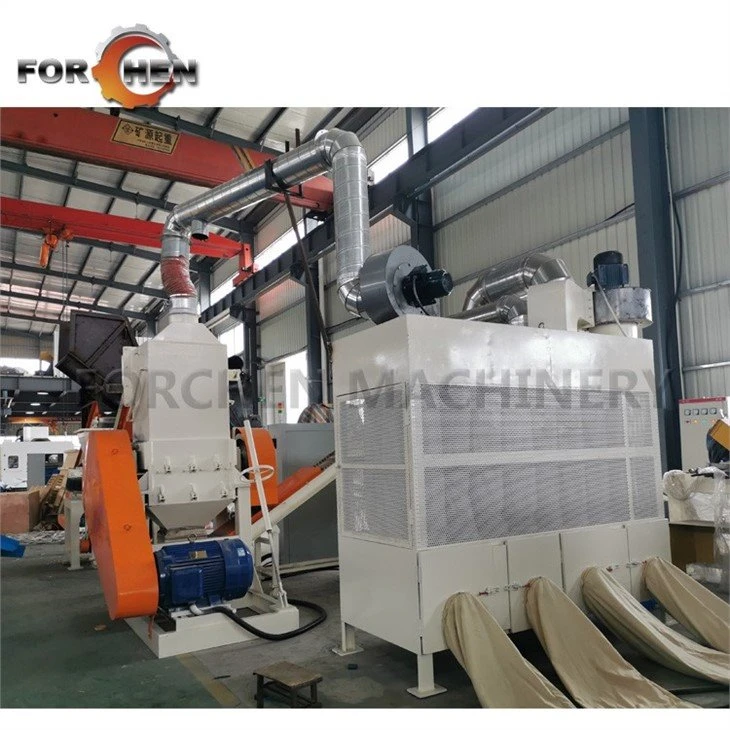

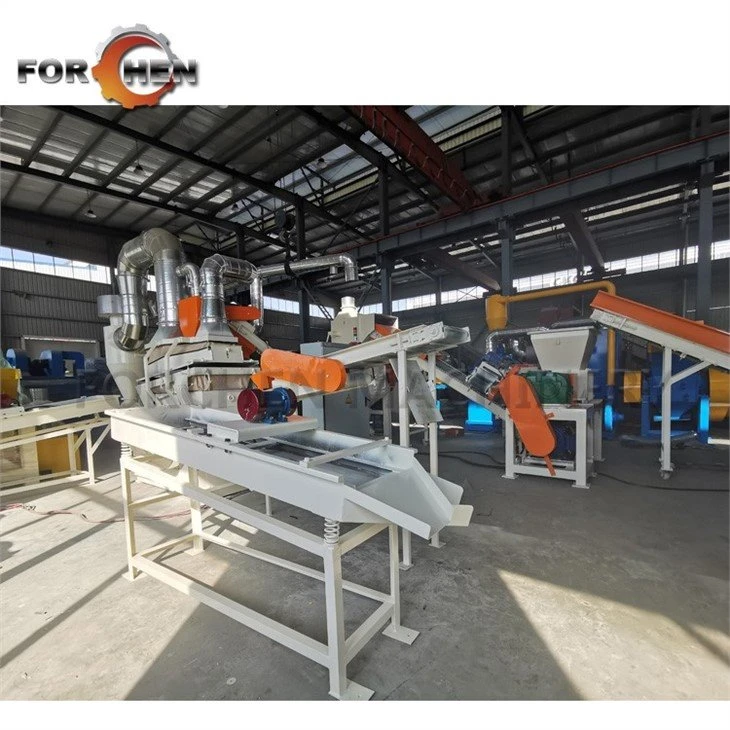

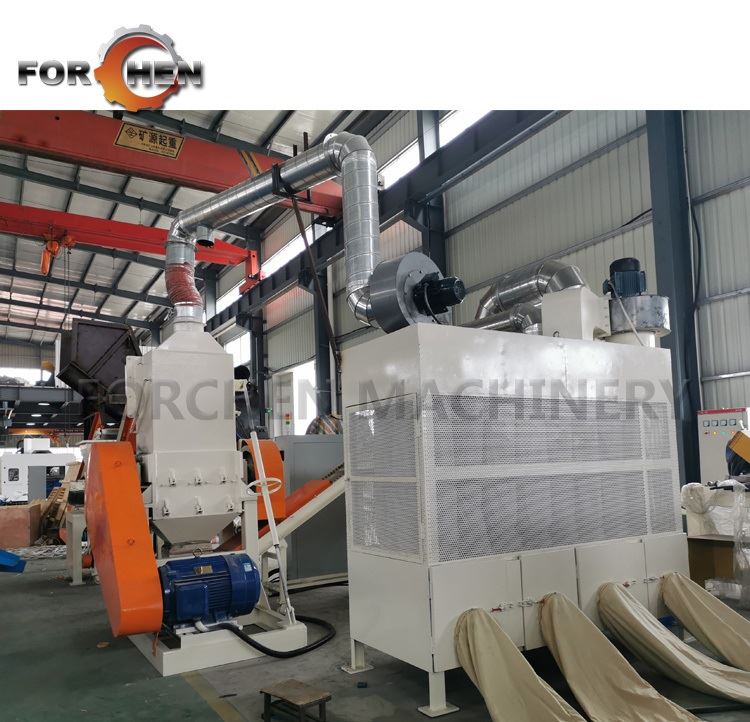

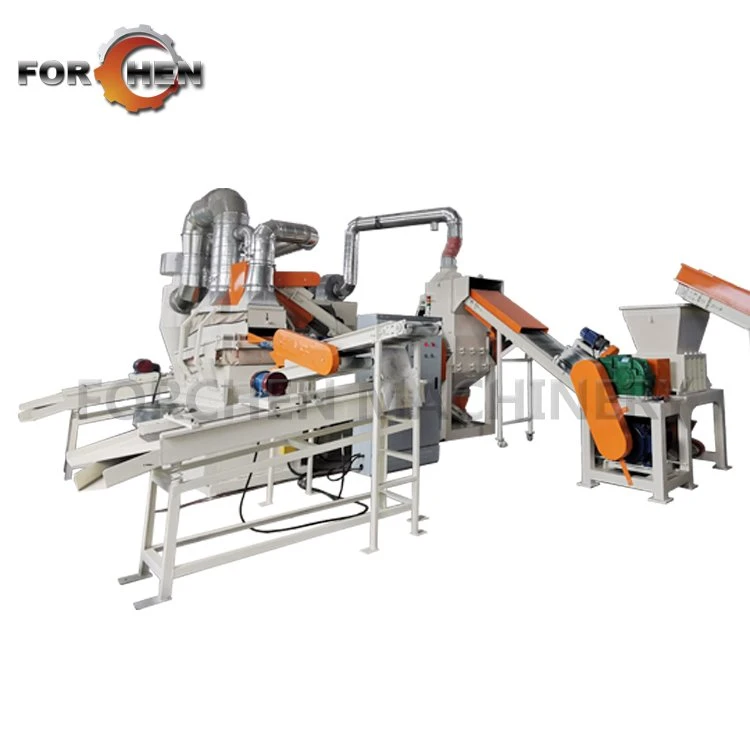

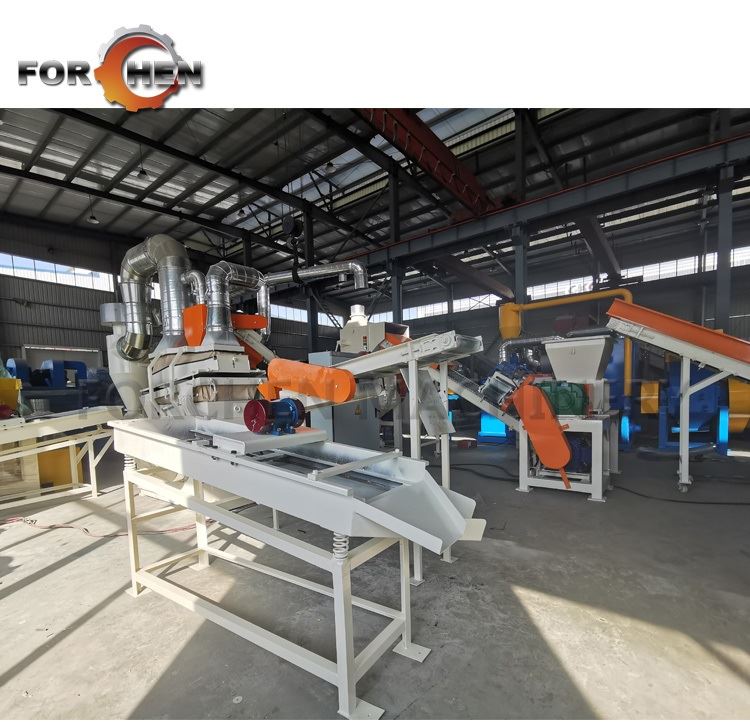

CG-800C is our newly developed complete set of copper wire recycling equipment, also called the Large Car Cable Recycling Machine. It has a production capacity of 800 kilograms per hour. This cable shredder and separator line are suitable for experienced metal recycling plants. Due to its high recycling efficiency, operators can achieve high profits by operating this large cable pelletizer. Cable manufacturers can also choose this type of high-capacity cable pelletizing line to recycle discarded or substandard cables.
Features
1. CG-800C Large Car Cable Recycling Machine contains different separation and processing machines. All parts are independent, so it is also very convenient to use.
2. The recycling method of this copper recycling plant is also dry, which will not cause environmental pollution.
3. The product is equipped with a stronger dust removal system and a complete set of scrap crushing separators.
4. The advanced PLC controller makes the operation of the granulator easier.
5. Because the conveyor adopts automatic feeding, only 2 operators are needed for the whole copper recycling line, which greatly saves manpower.
Specification:
Name | Large Car Cable Recycling Machine |
Model | CG-800C |
Applicable wire diameter range | 1-30MM |
Processing capacity | 700-800KG/H |
Power | 110KW |
Voltage | as required(3 phases) |
Weight | 8000kg |
Detail instruction:
1. Pre-crusher: We use the single-shaft crusher as the first crusher used in the entire cable recycling process. Through the special cutting structure, it can cut the waste cable into a suitable small size, which is convenient for the next processing. This design also helps to improve the final recycling efficiency and reduce the wear of the secondary pelletizer tool.
2. Hydraulic handle: The manual hydraulic handle can be used to open the cover of the cable granulator, which is convenient for the operator to check the blade in the room.
3. All supporting secondary vibrators and magnetic separators use enhanced power to improve copper selection efficiency.
4. The electric control cabinet adopts a plug-in wire design. It makes the recycling machine easier to connect and safer to operate. There will be number markings on the terminal blocks, users can easily find the terminal blocks and connect to the correct unit.
