Description

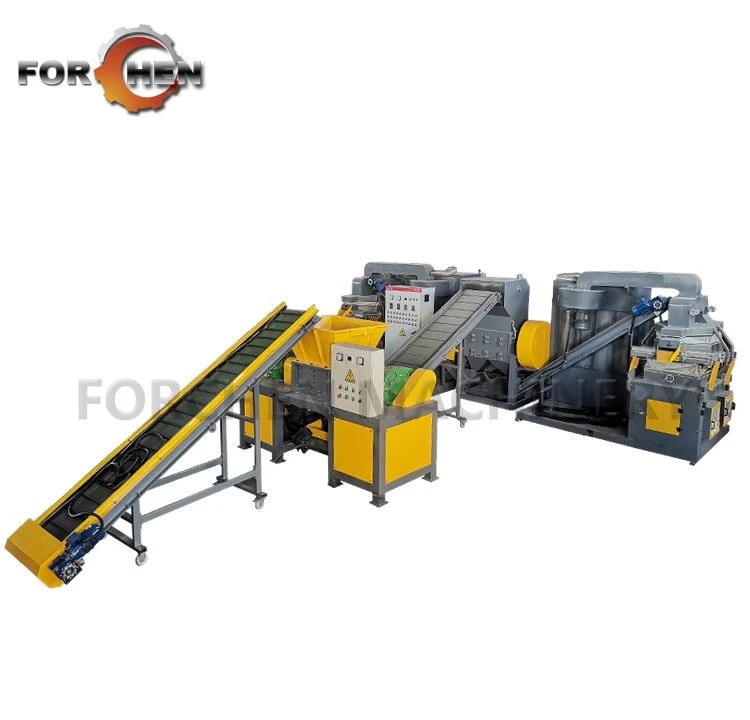

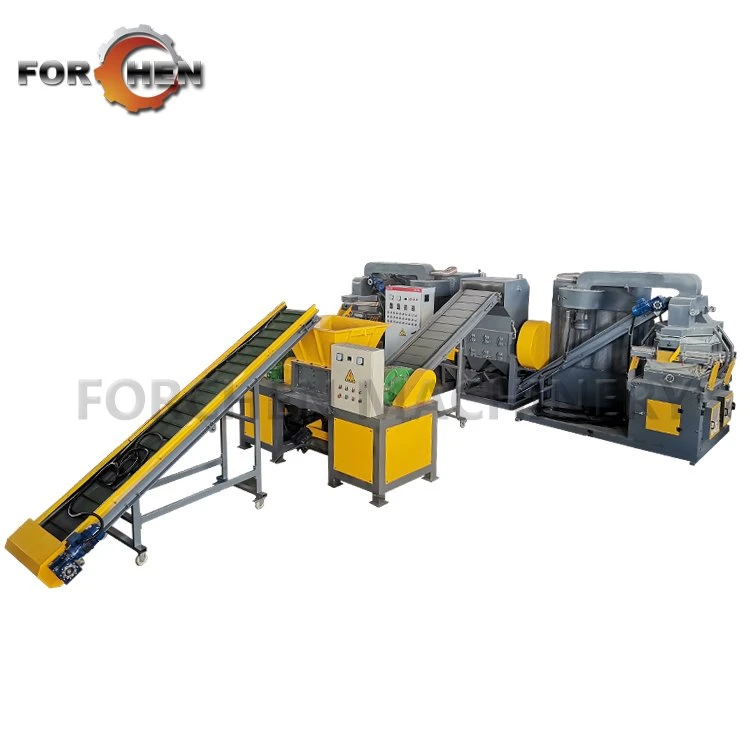

This Big Capacity Copper Wire Shredder is suitable for large scrap metal recyclers and cable wire manufacturers. The entire cable recovery line requires a large power supply and a large copper recovery operating space. The recovery device has a high recovery efficiency of over 99.5%. After three separations, the purity of the metal particles produced is over 99.99%. Since the entire recycling process is circular, users can re-feed the impure metal into the machine for a second cable separation, resulting in higher copper recovery rates.
Features
1. This Big Capacity Copper Wire Shredder includes a double shaft metal shredder, a vertical cable shredder, two sets of copper separators, and a dust collector.
2. Users can put waste threads of different specifications into the machine at one time without prior sorting, so the processing process is easier.
3. Using a PLC controller, the granulator can automatically adjust the wire feeding speed, and the wire recycling machine can also work stably.
4. The separation method of the copper cable recycling machine is stepped, including air separation and vibration separation. The final copper or aluminum purity is 99.99% and can be put into the smelting furnace for reuse.
Specification:
Name | Big Capacity Copper Wire Shredder |
Model | CG-1000B |
Applicable wire diameter range | 1-30MM |
Processing capacity | 1200-1500KG/H |
Power | 120KW |
Voltage | as required(3 phases) |
Dimension | 12*4.3*3m |
Weight | 9000KG |
Matched accessory machines:
1. Electrostatic separator: This separator machine could separate output metal and non-metal granules with high voltage static.
2. Magnet separator: This is a conveyor type separator which used for removing ferrous impurities inside other non-ferrous material.
3. Blade sharpening machine:Crusher knives of the cable granulator machine could be sharpened by this machine.
